General overview

This section explains how the framework for sliders in the application was developed, how it works, and how you can extend it.

Types of Sliders

Currently, there are three types of sliders in the application:

1. Simulation Sliders:
   In CPP_SimulationSlideBar.h/.cpp.

   Controls simulation-related parameters.
   2. Slicer Sliders:
   In CPP_SimulationSlideBar.h/.cpp.

Controls slicer-related parameters.

1. Settings Sliders:
   Located in UCPP_SettingsSlider.h/.cpp.

   Currently not used on the settings page to adjust various application settings.

This approach ensures visually coherent sliders with different functionalities based on the application's context. We aimed to make this framework as user-friendly as possible, meaning you only need to define a few variables to create a new slider that controls a unique part of the application.

Before explaining how to implement this, let’s cover the general structure of these reusable sliders.

Structure

UCPP_SimulationSlideBar, UCPP_SlicerSideBar, and UCPP_SettingsSlider inherit from UUserWidget, allowing for easy styling in the editor. Each slider serves as a parent class to the corresponding WidgetBlueprint located in Content/UI/Components/Sliders. The prefix WB_ distinguishes widget blueprints from regular blueprint classes.

In the editor, you can adjust the appearance of sliders and related components such as headers, maximum, and minimum markers.

Reusability

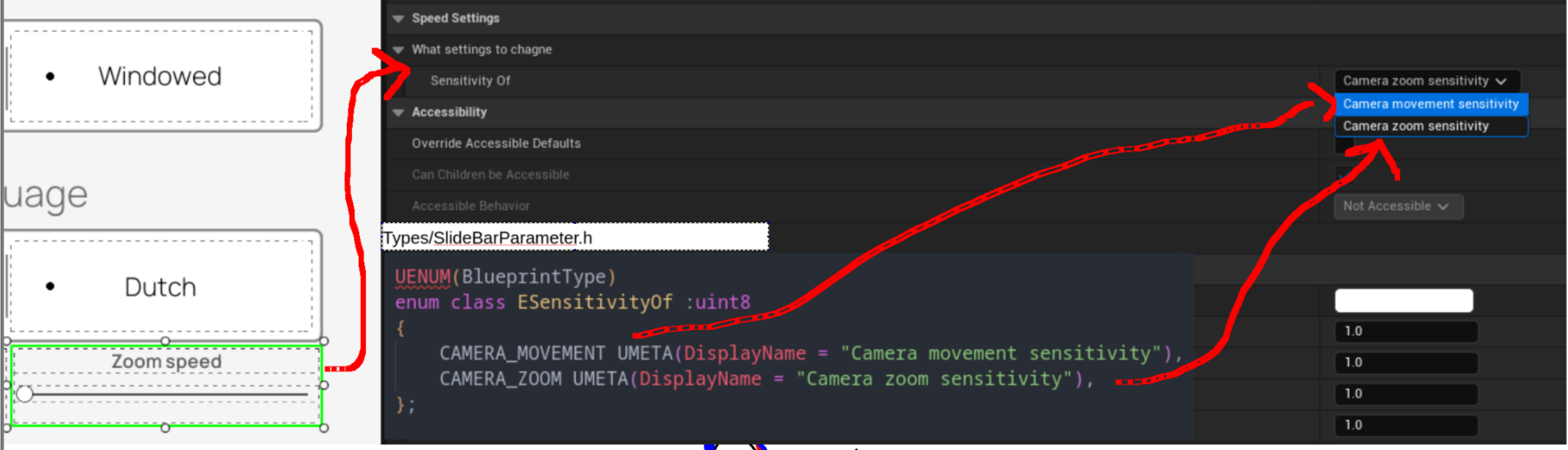

The most important aspect of the framework is its reusability. Since sliders can affect various parameters in the simulation or application settings, these parameters can be configured directly in the editor during the design process. Image below ilustrates one of the sliders displayed on settings page and its corresponding enum that is specifying which fields to change.

Note:
If you find this approach overly complex, feel free to adjust it, but be sure to update this documentation accordingly.

Data Storage

The actual values that are modified by the sliders are stored in a Struct defined in Types/SlideBarsParameters.h. This struct holds all the relevant slider parameters used throughout the application.

Settings Slider

USTRUCT()
struct FCameraSensitivitySettings
{
    GENERATED_BODY()


    /**
     * These are default values, they are changed by multiplying settings slider value based on the specified enum
     * The settings slider is in the range 1 - 2 meaning that when slider is 1 the defaults value is applied otherwise
     * (value * sliderValue) applies. If slider value is 2 than Sensitivity is multiplied by 2
     */
    float CameraMovementSensitivity{1000.0f};
    float CameraZoomSensitivity{1600.0f};



    /**
     * Slider values so that we can save the state of the slider through the game, slider is from range
     * 1 to 2 so MAKE SURE THAT THIS CONDITION IS MET
     */
    float SliderValueForCameraMovement{1.0f};
    float SliderValueForCameraZoom{1.0f};
}

The settings slider adjusts application-related parameters such as camera zoom and movement sensitivity(code listing above). It works by retrieving specific fields from the struct and updating them when the slider's UI element triggers the OnMouseCaptureEnd event.

Data Retrieval Process

Since the settings slider is expected to be used primarily on the settings page, data retrieval should occur during the OnBeginPlay event of different levels. This is because when a user leaves the current level (e.g., to access the settings), that level gets unloaded. When the user returns, the level is reloaded, triggering the OnBeginPlay event again, where data can be fetched and applied.

Considerations

If the level is not refreshed, you need to manually trigger an event that updates parameters like camera rotation sensitivity and zoom sensitivity. This ensures that changes made in the settings are applied in real-time without requiring a level reload.

The struct for the settings slider that holds data of different parameters looks like the code listing below. In case you want to have another settings here just simply add the new field to hold the value to change. You must not forget to also add the field that is going to hold the slider state, that is the value of the slider.

Enum-Based Value Selection

Another crucial component of the slider architecture is the use of an enum, which specifies which values inside the struct should be modified.

Why Use Enums?

Since direct access to struct values in the Unreal Engine editor is not possible, we use enums to bridge this gap. Enums allow us to create dropdown combo boxes within the editor, making it easy to select which struct fields should be affected by a specific slider.

How It Works

• Enum Definition:
  The enum defines all possible parameters that a slider can modify.


  UENUM(BlueprintType)
  enum class ESensitivityOf :uint8
  {
      // access FCameraSensitivitySettings.CameraMovementSensitivity
      CAMERA_MOVEMENT UMETA(DisplayName = "Camera movement sensitivity"),
      // access FCameraSensitivitySettings.CameraZoomSensitivity
      CAMERA_ZOOM UMETA(DisplayName = "Camera zoom sensitivity"),
  };


• Editor Integration:
  The editor displays the enum as a dropdown list, allowing developers to choose which struct field the slider should control.
• Data Binding:
  When a slider event fires (e.g., OnMouseCaptureEnd), the framework checks the selected enum value and retrieves the reference to the field inside the Struct that holds the data which can be changed like this .

//UCPP_SimulationSlideBar.cpp

void UCPP_SettingsSlider::OnSliderMouseReleaseHandle()
{
    auto CurentSettingsValue = Cast<UCPP_GameInstance>(GetWorld()->GetGameInstance()) // cast game instance to our game instance
    // sensitivy of is the value selected from editor
        ->GetCameraSensitivitySettings().GetSensitivityOf(SensitivityOf); // retrieve the ref to setting parameter

    // update the field
    GameInstanceRef->GetCameraSensitivitySettings().GetSliderValueFor(SensitivityOf) = MainSlider->GetValue();

    CurentSettingsValue = CurentSettingsValue * MainSlider->GetValue();
}

This setup keeps the architecture flexible and user-friendly, enabling parameter binding directly from the editor.

Example: Camera Sensitivity Settings

For instance, the FCameraSensitivitySettings struct includes a function that uses the provided enum value to return a reference to the appropriate field within the struct. This allows the slider to modify the correct parameter dynamically.

How It Works

Enum Selection:
In the editor, the developer selects an enum value corresponding to a specific field in the struct.

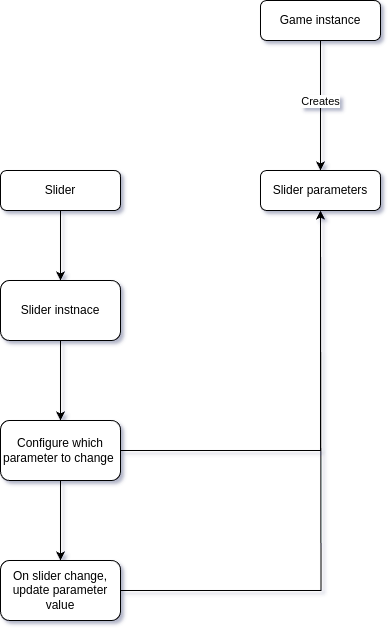

Simulation settings and correcponidng enum in the code

Field Retrieval Method:
The selected enum is passed to a method within the struct.
The method returns a reference to the relevant field based on the enum value.

Cast<UCPP_GameInstance>(GetWorld()->GetGameInstance()) // cast game instance to our game instance
    // sensitivity of is filled in the UI
    ->GetCameraSensitivitySettings().GetSensitivityOf(SensitivityOf);

Value Update:
When the slider fires its value change event, the retrieved struct field is updated accordingly.

GameInstanceRef->GetCameraSensitivitySettings().GetSliderValueFor(SensitivityOf) = MainSlider->GetValue();

Both structs are instantiaded inside the CPP_GameInstance.cpp file in the constructor through initialization list. With this approach values of the struct stay presistant through the entire runtime of the application. Note that this applies onli for the Settigns structs.

Simulation settings and correcponidng enum in the code

Simulation Sliders

Conceptually, simulation sliders work exactly like settings sliders. The primary differences lie in how data is updated and how corresponding structs are instantiated.

The FSimulationSlideBarsParameters struct is initialized in the UCPP_SimulationSettings constructor using new key word, this is risky but due to the unreal engine strucutre it has to be done (its is deleted in destrucutor so it should be safe). This approach is used because the SimulationManager class is only valid within the Explorer Level. It is also assumed that all simulation-related sliders are visible only within this level.

Handling Update of the Simulation Parameters

The parent class of WB_SimulationSlideBar holds a pointer to the SimulationManager. This class contains a delegate that is triggered whenever the slider’s value changes. Other classes can listen to this delegate as long as they maintain a reference to the SimulationManager class.

This setup ensures that updates to simulation parameters occur seamlessly, keeping the system modular and easy to extend.

Example code:

// assign what function should get exectued once simulation parameters update
Simulationmanager->UpdateSimulationEventDelegate.AddUObject(this, &ACPP_Cell::UpdateBloodFlowSimulation);

IMPORTANT: The delegate in the simulation manager will pass the pointer to the updated FSimulationSlideBarsParameters structure which should be accessed only inside the update function. Valid signature of the function that can be triggered once simulation updates can look like this

void UpdateBloodFlowSimulation(FSimulationSlideBarsParameters* updatedSimulationParameters);
